Swarf Tipping Skip - Low-Line

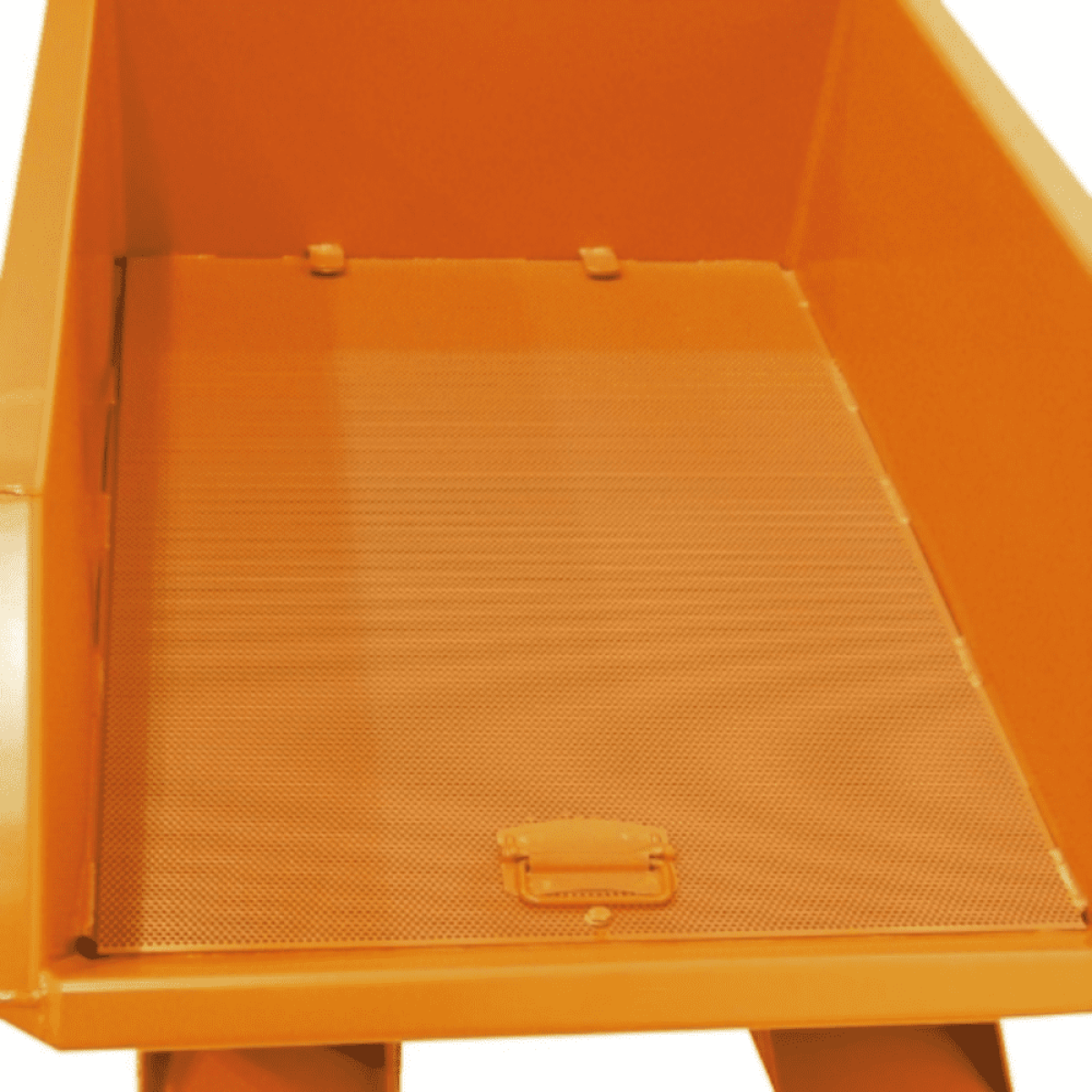

- Perforated intermediate floor and drain tap for liquid removal
- Fully welded, oil and watertight container
- Volume options from 0.30 to 1.50 m³
- Optional supporting feet for pallet truck use
From £1,256.85 each ex VAT From £1,508.22 each inc VAT
Select a add to cart and then complete the required options to configure your Swarf Tipping Skip - Low-Line.
From £1,256.85 ex VAT From £1,508.22 inc VAT
NEED ANY ASSISTANCE?
OUR EXPERT TEAM IS HERE TO HELP YOU.
CONTACT US TODAY OR CALL US ON
Information

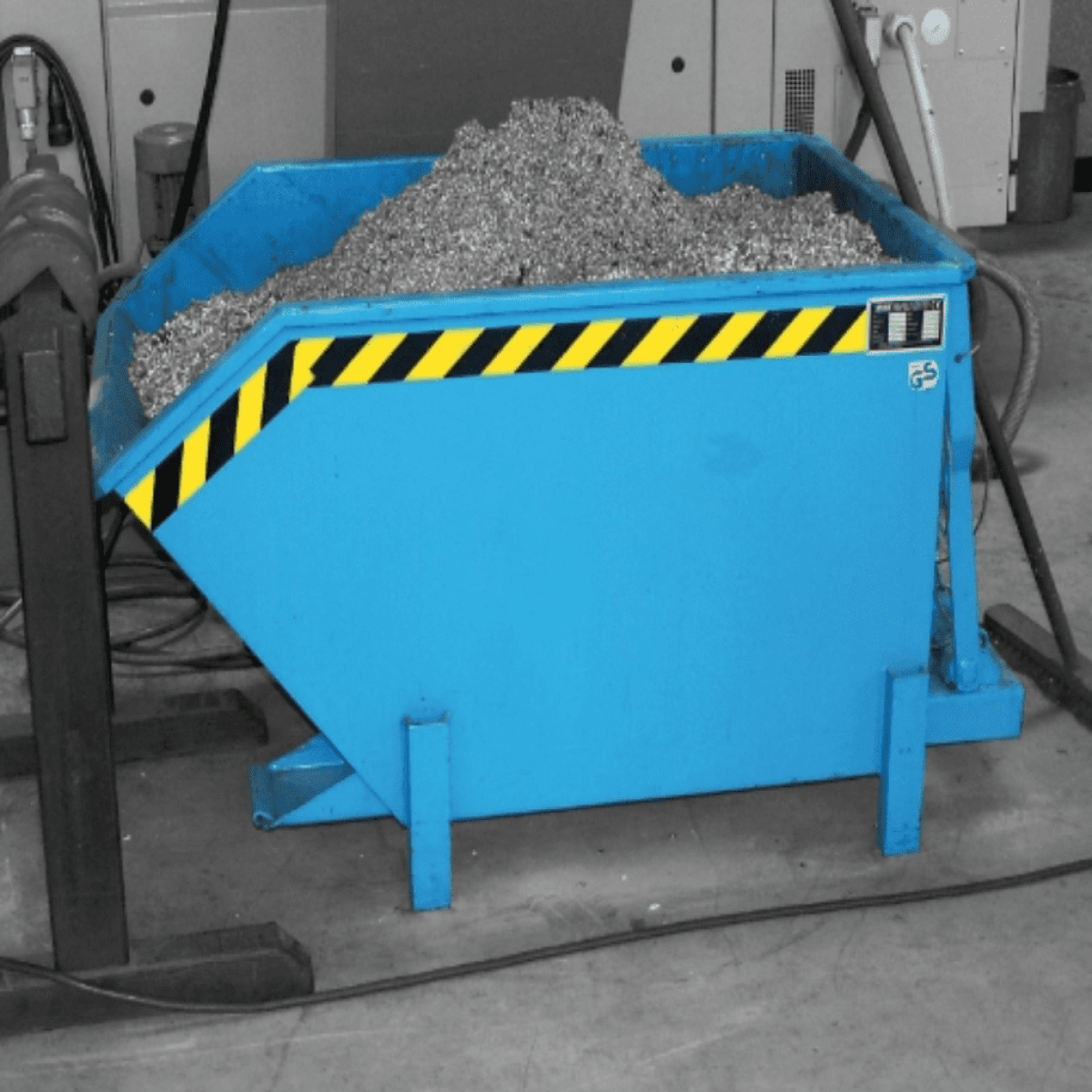

The Swarf Tipping Skip Low Line has been designed to provide a practical solution to the problem of the gathering, storing, and disposing of metal swarf, shavings, and other machine waste products in engineering workshops and industrial settings. Its low-line design allows for the tipping skip to be easily placed under the machinery and manufacturing equipment and will help gather the waste at its place of origin. The durable design of the tipping skip makes it easy and efficient to deal with the waste from metalworking processes, while the tipping feature allows for easy disposal of the waste products.
|
Model |
Volume |
Dimensions |
Dumping Edge |
Load capacity |
Weight |
|
|
(approx) m³ |
L x W x H (mm) |
Height (mm) |
kg |
kg |
|
SGU 30 |
0.30 |
1440 x 680 x 580 |
395 |
750 |
125 |
|
SGU 50 |
0.50 |
1440 x 780 x 680 |
495 |
1000 |
137 |
|
SGU 75 |
0.75 |
1440 x 1280 x 680 |
495 |
1000 |
182 |
|
SGU 100 |
1.00 |
1640 x 1280 x 780 |
565 |
1000 |
211 |
|
SGU 150 |
1.50 |
1640 x 1280 x 1090 |
890 |
1000 |
247 |
· Ideal unit for bulk material and industrial waste
· Can be emptied at any height by cable operated by the driver
· 1 drain tap separates liquids and solids
· Fully welded container, oil and watertight
· Body with reinforced edging
· Suitable for crane, pallet truck or bale gripper
Forklift Pocket Dimensions (mm)
SGU 30 Forklift pockets: A-12 B-200 C-60 (mm)
SGU 50 Forklift pockets: A-150 B-200 C-60 (mm)
SGU 75-150 Forklift pockets: A-495 B-200 C-60 (mm)
Accessories:

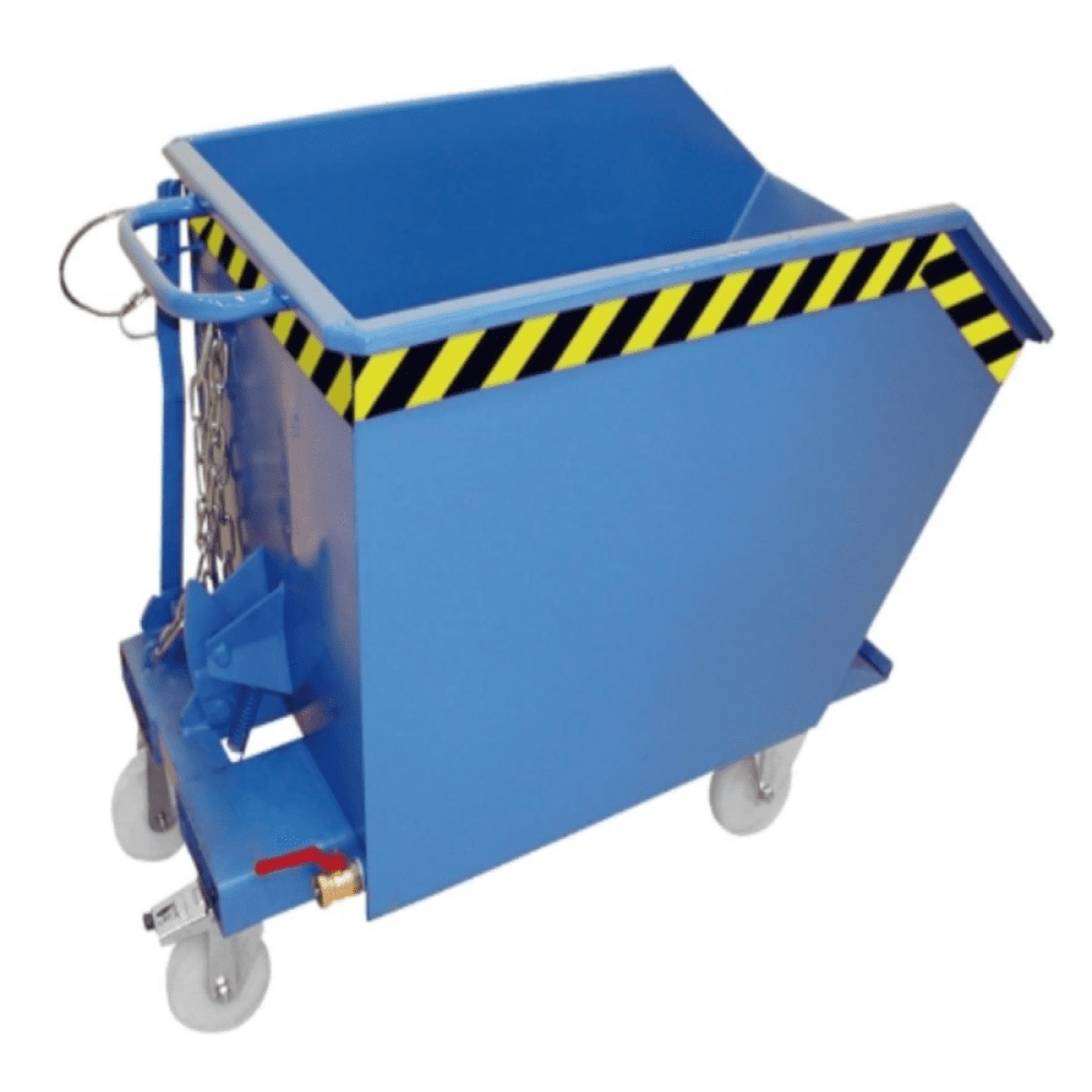

1. 2 swivel + 2 fixed Polyamide Castors Ø 180 mm, one swivel castor with brake (increases height of unit by 220 mm) SGU 30-75 Castors load capacity 1000kg. SGU 100 -150 Castors load capacity 2550 kg
2. Galvanized lid, can be opened from both sides
3. Supporting feet for use with a pallet truck
Colour Choice
Supplied complete with 'CE' Certificate, EG conformity statement and full operating instructions
FREE UK mainland delivery 3-4 weeks (excluding Highlands & Islands)
